CLEAN ROOM VALIDATION

FIRST TIME IN INDIA AT CLEAN FOOT COROPRATION substitute for DOP is available, We have got the equipment to carry out HEPA LEAK test using PAO Poly Alpha Olefin Emreey 3004, As DOP is carcinogenic, ON HEALTH groups use of DOP is being discouraged, We have now PAO Hepa Leak Test. The latest Particle Counter very light weight, window based screen, programmable with computer, inbuilt SOP for four different standards, ALPHANUMERIC print out of biggest advantage LASAIR PMS USA make particle counter having 5 channels. Conventional method of velocity and air changes using vane type anemometer is replaced now at CLEAN FOOT first time in INDIA, by TSI MAKE USA CAPTURE HOOD, The number of advantage includes 24 sensors all are hot wire sensors, in 1 minute it takes 28 readings and give average in CFM directly, Online adjustment of dampers pressure balancing was not easy before this it was highly time consuming chapter, which now NEEDS not more then a minute, online you can coordinate with mezzanine floor engineer & adjust the damper to desired designed CFM. Recovery test and Shoot up time Test using particle counter. Area SMOKE TEST using TTC and Flow pattern Test for critical areas, Light intensity and Sound Level Test is available.

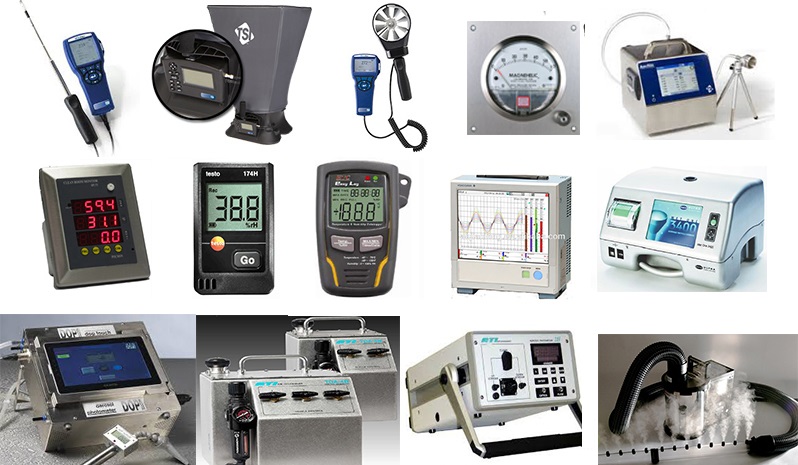

1 CFM Aerosol Photometer:

Model No. ATI-TDA-2G

The ATI-TDA-2G is forward light scattering, linear photometer, it operates on 90 to 240 volts, 50 to 60 Hz. Adjusting automatically. The basic functions of the TDA-2G are to sample air or other gas and report the concentration of particulates in the sample. The TDA-2G is compact and light weight. The auto Ranging & on step Zeroing features assure the accuracy of all readings.

Aerosol Generator with 6 Laskin Nozzles

Model : ATI TDA 4B

The Aerosol Generator having 6 Laaskin Nozzles capable of producing a poly dispersed test aerosol having more than 92 % of more than 1 micron in accordance with Institute if Environmental Sciences. When is total output at 20 psig is diluted by 810 cfm of air the aerosol concentration is approximately 100i/lit. Three valves permit the unit to be operated with 1 to 6 Nozzles, providing a wide range of aerosol concentrations.

Metone Laser Based 1 CFM Particle Counter

Model No.A4208

The Metone Model a2408 counter are reliable and easy to operate workhorse. A quiet, carbon-free provides steady vacuum power 1 cfm. The built-in printer allows either immediate or delayed printing of results, data can be downloaded at the operator's convenience from the 400-record buffer and displayed graphically or as a table in he built in spreadsheets.

CLEAN ROOM VALIDATION FEATURES:

Size Range : 0.3 to 5.0 micron to 4 particle size channels.

Flow Rate : 1 CFM (28.3LPM) with +/- 5% accuracy

Printer : Built in Thermal Printer

LasirII 1 CFM Particle Counter

Model 310 A,310

The Lasair II from Particle Measuring systems is the latest offering in our industry-leading aerosol line. It provides complete monitoring features in a compact, portable convenient package. It is real time measurement of defect-causing particles.

Patented sample flow control gives more accurate measurements, eliminating errors associated with manifold sampling. Use as a portable counter to localize source of particles.

Size Range : 0.3 to25.0 (0.3,0.5,1.0,5.0,10.0,25.0)

Flow rate : 1 CFM (28.3 LPM) with +/- 5 % accuracy.

Printer : Built in Thermal Printer

TSI Accubalance Air Capture Hoods:

Model No.8371

TSI's Model 8371 Accubalance Air Capture Hood measure air volume flowing through registers, diffusers and grills. Weighing just seven and a half pounds, these air capture hoods are easy to carry, lift and use. Simply hold the Accubalance up to a diffuser or grill and read direct supply or exhaust airflow on the large digital display.

Probe Type Anemometer:

Model No. 8384

TSI'S Velocic Calc probe type anemometer simultaneously measure and data log several ventilation parameters using a single probe with multiple sensors. The probe anemeometer measure velocity, temperature, and calculates volumetric flowrate and pressure measurement for static pressure and pilot tube readings and humidity measuremnt as well as performs dew points, wet bulb temperature, and heat flow calculations.

Rotating Vane Anemometer:

Models 8321,8322,8324

TSI'S Velocicalc rotating Vane Anemometers accurately measure air velocity and temperature, calculate flowrate, perform averaging, and determine minimum and maximum readings.,

Applications :

The above instruments are applicable to

All Clean Rooms & Sterile Areas.

Reasearch & Development Labs.

Pathology Labs, Biotech.

Vaccine & Non-Vaccine Plant.

Hospitals & Operation Theaters

Laminar Flow work stations.

Paint Booth.
