CLEAN ROOM EQUIPMENTS

A2F MAKE PASS BOX

Features

Best to avoid cross contamination of product
UV Tube
Wall grouted modules
Electromagnetic interlocking system with buzzer
SS.304/MS Powder coated
Stiffner for rigidity of base
Mini helic gauge 0-50mm w. g.

Description

The A2F make pass boxes are one of the safest contains clean zone cross contamination of material in transit. Pass box one door will be open at a time with a electromagnetic interlocking to avoid the cross contamination. UV tube light will be on when both the doors are closed. Dynamic pass box with standard A2F make HEPA (Eff.99.97 down to 0.3m) & A2F make per filter (Assign 90%Eff.) and Motor Blower assembly in options of 500 and 1000 cfm with UV resistant glass windows validate check inside the pass box.

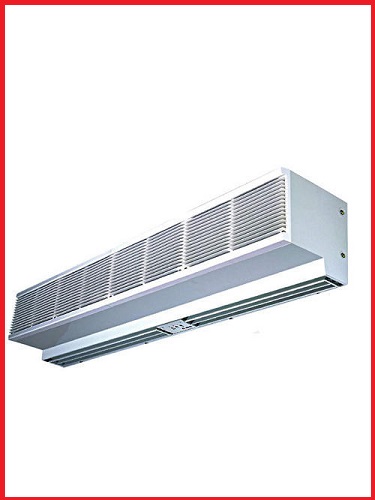

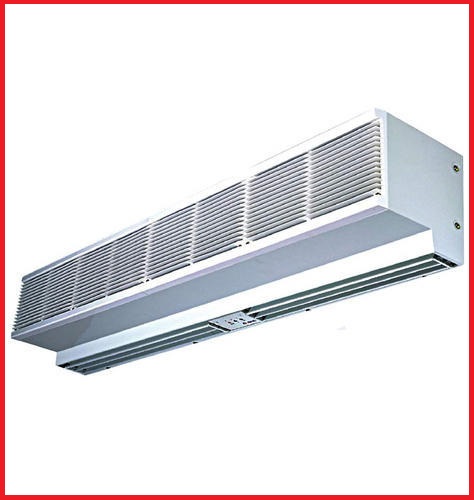

AIR CURTAIN

Features

Convenient hanging type modules on the doors

Noise free effective air

Domestic Purpose air curtain with velocity of 12m/s thru nozzle

Industrial purpose air curtain with velocity of 15m/s thru nozzle

Description

A2F make air curtains, a preliminary method to avoid cross contamination having FRP blowers ensure low noise, long life operations with single phase motors for domestic & three phase motors for industrial applications. Available in MS Powder coated & SS 304 also Flame Proof Air Curtains.

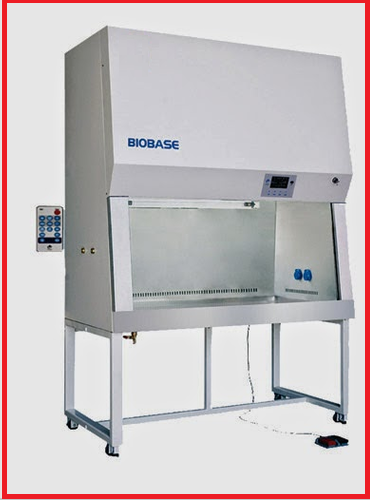

BIO HAZARD HOOD

Features

Heavy duty gauge SS304 construction of Bio safety cabinet

SS316 Tray will be provided for resistance of corrosion [optional]

Counter balance with glass shutter is provided for protection during Handling the hazardous sample & contents

30% & 10% exhaust of class 100 air protect environment

Class 100 air from supply HEPA protects the product

Bio safety cabinet with virus burner to eliminate the hazardous viruses during the work

Velocity 90 + / -20% below working area

Description

User Friendly design Quiet Operation counter Weight Balanced front shutter, Protection of the product , room and person on filling / emptying of inliners, containers, big bags etc. Horizontal & vertical clean-air curtains Shield the protection and emission area against each other like barriers. Paricals from outside do not get in (Protection of product) product emissions are captured safely and led off (protection of person & room, avoidance of cross contamination in the room).

Class II type A bio safety cabinet, designed for use with biosafety level 1,2&3.

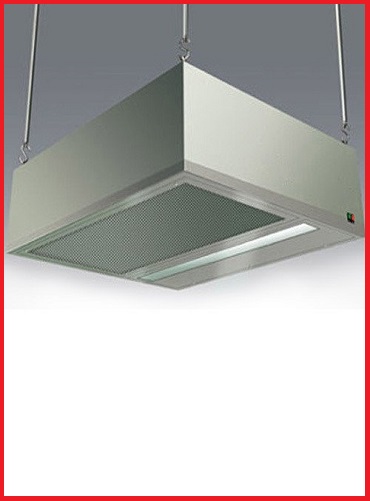

LAMINAR AIR FLOW UNIT

Features

Compact, mobile transportable design

Quiet operations 60 db

Light with 1000 lux & UV tube

Class 100 work surface

Available vertical, harizontal & mobile unit with battery backup

Counter balance wet glass shutter

MOC SS304, MS Powder coated

Velocity 90 + / - 20% below working area

Description

The application of these A2F make laminar air flow module is various and takes place in the industrial manufacturing for the protection of the product in the following areas

Pharmaceutical, food, electrical, cosmetic industry & also at R & D work.

Filling sections, Assembling processes, Demanding clean room conditions & in

Which the product is not emitting

The unit is ideal to protect the product from particular contamination with the help of class 100 air & UV tube.

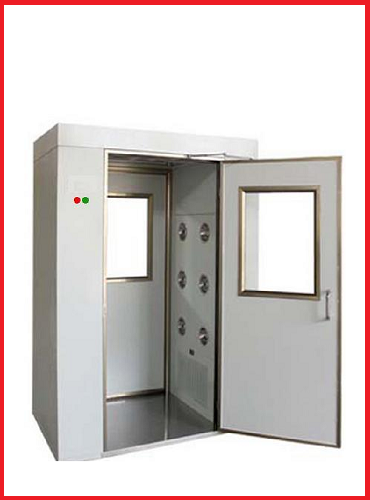

AIR SHOWER

Features

HEPA Filter eff.99.97% down to 0.3micron

Pre filter eff. 85-95%

Motor blower assly: High capacity, FRP blower with aluminium impeller dia 7" X 41/2" to produce 6000 FPM high velocity

Electrical supply 3 phase, 440 volt, 50 Hz

Total 16 nazzles provided for the single person entry level

Hing type door with glass window

Description

Heavy duty Rigid Construction of aluminium door full glazing, Hinges & electromagnetic interlocking with emergency release switch HEPA filter eff. 99.97% down to 0.3 micron eliminate the dust. Emergency release switch prevent accidental access to clean zone area wiyh 1-180 seconds adjustment of door release adjustable timer. Blower generated nozzle velocity 6000 FPM with 30mm dia. Nozzle effectively clean the surface of the object.

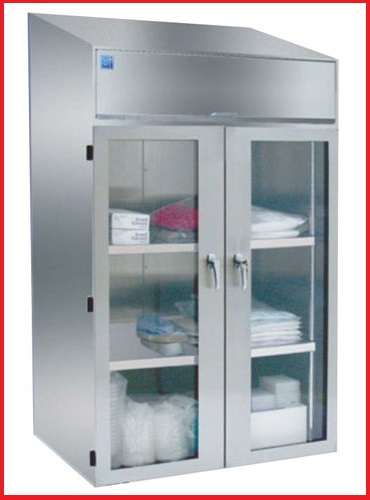

GARMENT STORAGE CUBICLES :

Garment Storage Cubicles comprising of HEPA filtration system with recirculatory arrangement , Fitler for Odour Removal , Heating mechanism and bacterial UV light suitable for lab coat and Boiler suit sets, Quiet , The application of these A2F make laminar air flow module is various and takes place in the industrial manufacturing for the protection of the product in the following areas Pharmaceutical, food, electrical, cosmetic industry & also at R & D work. Filling sections, Assembling processes, Demanding clean room conditions & in Which the product is not emitting

The unit is ideal to protect the garment from particular contamination with the help of class 100 air & UV tube.
